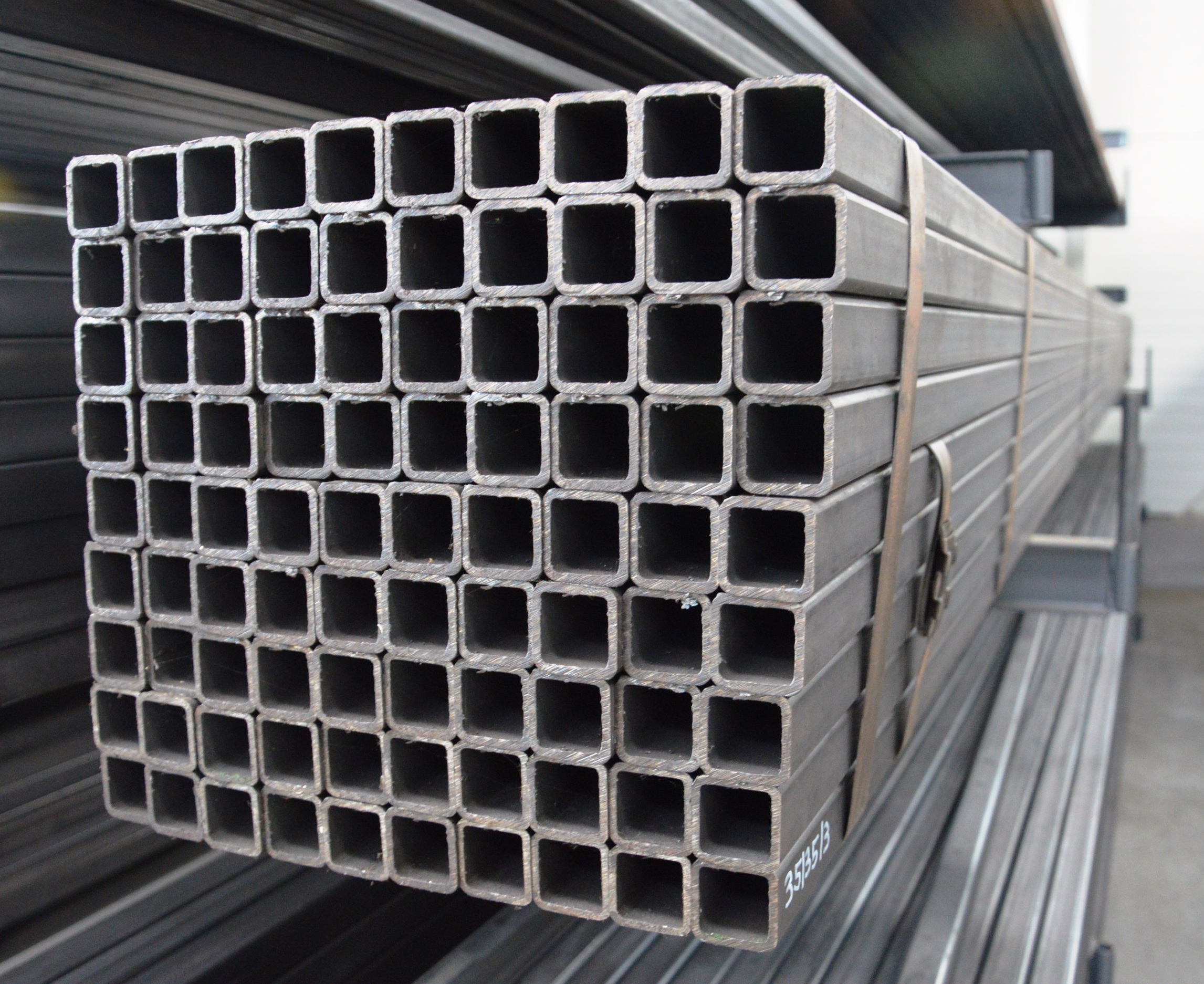

Uzavreté profily so štvorcovým prierezom
Uvedené údaje majú informatívny charakter. Pre informácie o cene a dostupnosti nás neváhajte kontaktovať.
Popis produktu
Popis produktu
Ťahajte tabuľku do strán →
 |
||||||||||
| EN | ||||||||||
| EN 10219 -1,2 | EN 10305-5 | |||||||||
| S235JRH | E235 | |||||||||
| b | t | Teoretická hmotnosť | b | t | Teoretická hmotnosť | b | t | Teoretická hmotnosť | ||
| (mm) | (mm) | (kg/m) | (mm) | (mm) | (kg/m) | (mm) | (mm) | (kg/m) | ||
| 15 | 1,5 | 0,590 | 35 | 2,5 | 2,540 | 80 | 2,0 | 4,860 | ||
| 15 | 2,0 | 0,770 | 35 | 3,0 | 2,860 | 80 | 2,5 | 6,070 | ||
| 20 | 1,5 | 0,850 | 40 | 1,5 | 1,810 | 80 | 3,0 | 7,100 | ||
| 20 | 1,8 | 1,020 | 40 | 2,0 | 2,380 | 80 | 4,0 | 9,220 | ||
| 20 | 2,0 | 1,120 | 40 | 2,5 | 2,930 | 90 | 3,0 | 8,010 | ||
| 20 | 3,0 | 1,420 | 40 | 3,0 | 3,330 | 90 | 4,0 | 10,500 | ||
| 25 | 1,5 | 1,100 | 40 | 4,0 | 4,200 | 100 | 2,8 | 8,130 | ||
| 25 | 2,0 | 1,440 | 50 | 2,0 | 2,930 | 100 | 3,0 | 8,990 | ||
| 25 | 2,5 | 1,760 | 50 | 3,0 | 4,250 | 100 | 4,0 | 11,700 | ||
| 30 | 1,5 | 1,340 | 50 | 4,0 | 5,450 | 120 | 3,0 | 10,840 | ||
| 30 | 2,0 | 1,750 | 60 | 2,0 | 3,560 | 120 | 4,0 | 14,250 | ||
| 30 | 2,5 | 2,150 | 60 | 2,5 | 4,390 | 125 | 4,0 | 14,870 | ||
| 30 | 3,0 | 2,390 | 60 | 3,0 | 5,190 | 140 | 4,0 | 16,760 | ||
| 30 | 4,0 | 2,940 | 60 | 4,0 | 6,710 | 150 | 4,0 | 18,010 | ||
| 35 | 1,5 | 1,570 | 70 | 2,0 | 4,190 | 160 | 4,0 | 19,300 | ||
| 35 | 2,0 | 1,990 | 70 | 3,0 | 6,130 | |||||
| 70 | 4,0 | 7,970 | ||||||||
Uvedené údaje majú informatívny charakter. Pre informácie o cene a dostupnosti nás neváhajte kontaktovať.
